This machine is suitable for the assembly of both single-station and double-station eye shadow box and can also be equipped with a closure box feeding module to assemble small closure box.
This machine adopts the latest technology such as servo drive,photoelectric detection,PLC control to complete the processes of automatic case feeding,glue spraying,power plate and mirror feeding and positioning etc.
| MAIN CONFIGURATION | |
| Servo Motor | Panasonic/xinjie |
| Servo Driver | |
| PLC | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Hot Melt Glue Manchine | JING TAI |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | |
| Model | YY-600F |
| Dimension | 2360*2050*2000mm |
| Machine weight | Around500KG |
| Speed | 22-35PCS/min |
| Max case size | 600*300mm |
| Max case size | 80*60mm |
| Max feeding size | 300*300*15mm |
| Min feeding size | 50*50*3mm |
| Precision positioning | ±0.1mm |
| Power supply | AC220V |
| Power | 6KW |
| Air pressure | 0.6Mpa |
Cases
MAIN SPECIFICATION
PROCESS FLOW

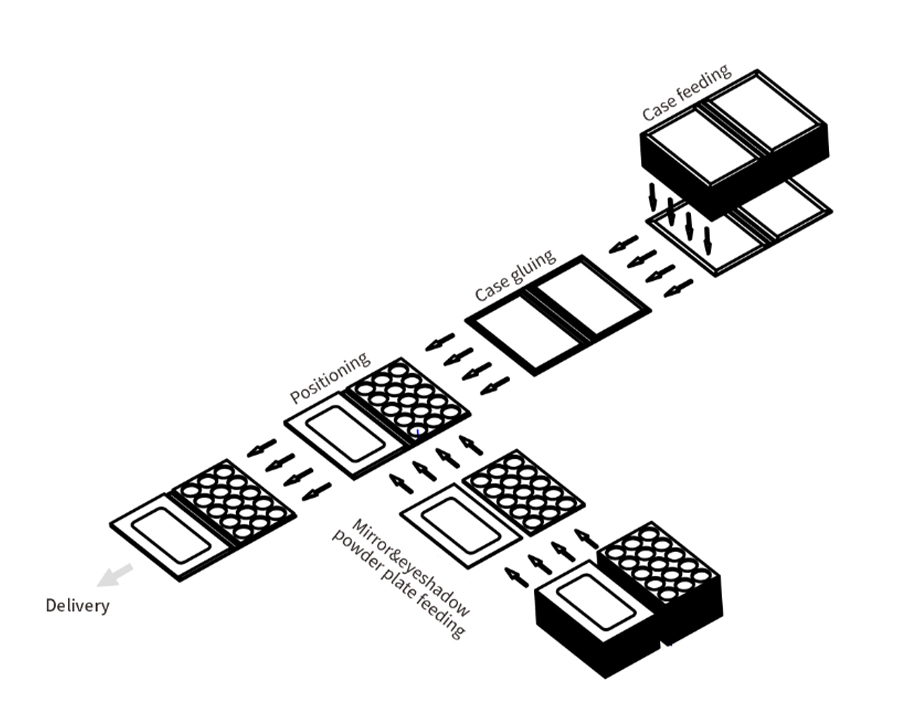

①Double station mode
PROCESS FLOW

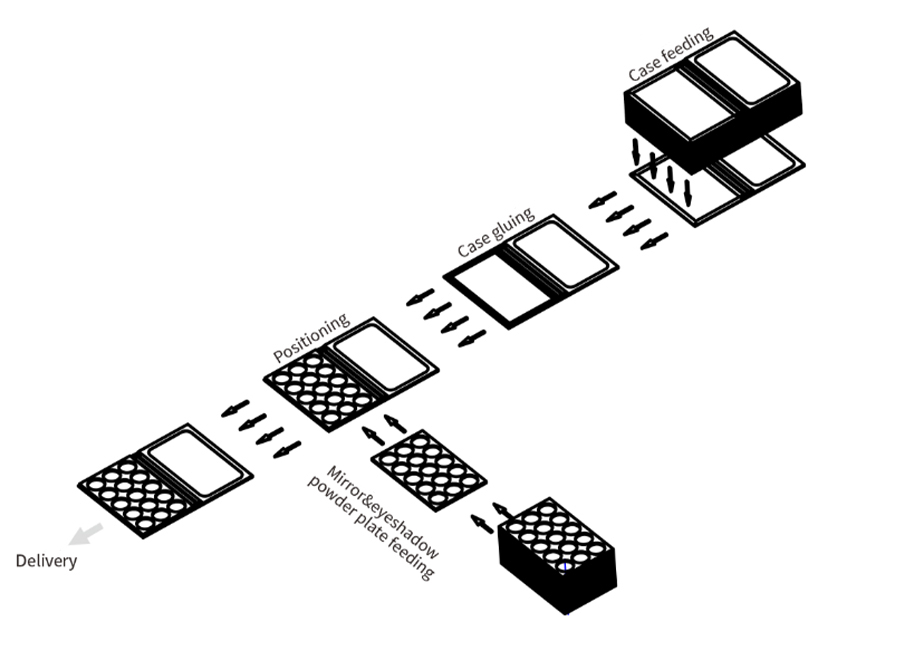

②Single station mode
