This machine is suitable for the assembly of closure boxes,EVA and other products,which has strong versatility.You can assemble different box types by replacing the box-feeding module.One machine can solve many practical problems such as many customer orders,miscellaneous,and small space.
This machine adopts the latest technology such as servo drive,photoelectric detection,PLC control,etc.,to complete the processes of automatic feeding,painting,positioning,and foldingforming.
| MAIN CONFIGURATION | |
| Servo Motor | Panasonic/xinjie |
| Servo Driver | |
| PLC | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Hot Melt Glue Manchine | JING TAI |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | |
| Model | YY-900D |
| Dimension | 4750*2100*2000mm |
| Machine weight | 800KG |
| Speed | 22-30PCS/min |
| Max case size | 900*450mm |
| Max case size | 90*95mm |
| Max box height size | 130*130mm |
| Max Inner box height size | 450*420*150mm |
| Precision positioning | ±0.1mm |
| Power supply | AC220V |
| Power | 8KW |
| Air pressure | 0.6Mpa |
MAIN SPECIFICATION
PROCESS FLOW
①BOOK BOX MODE

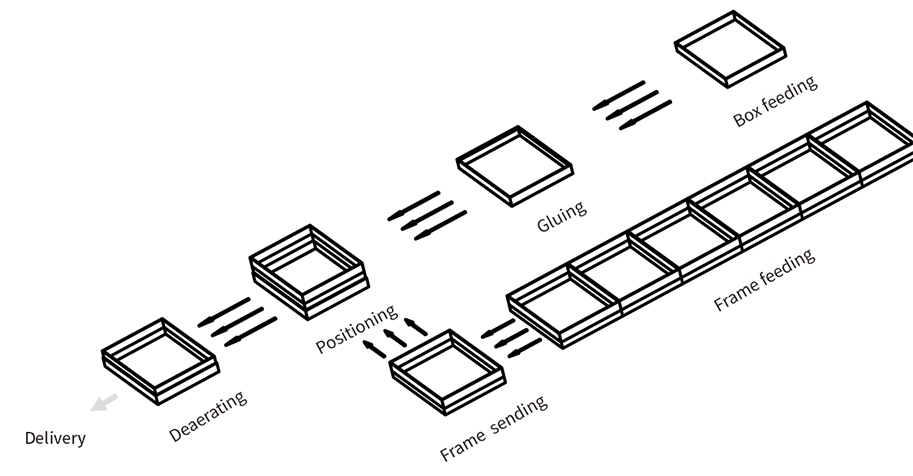

PROCESS FLOW
②FRAME BOX MODE
