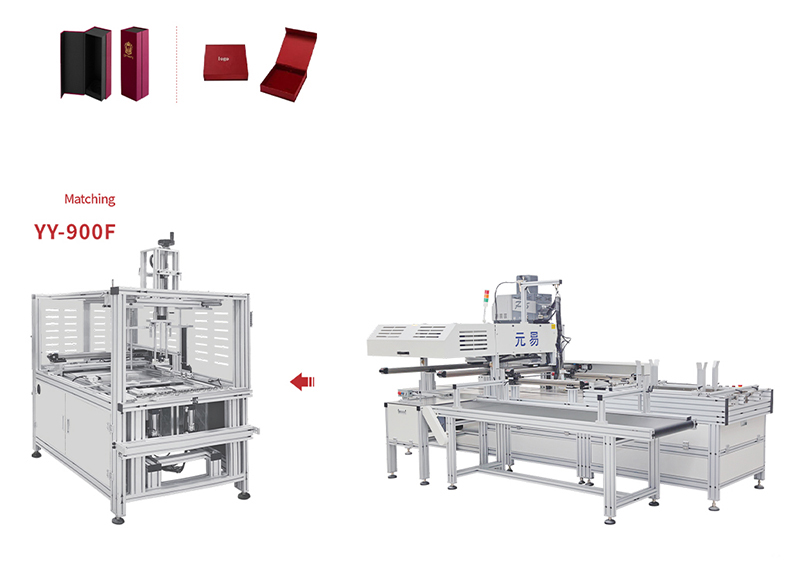

This machine is suitable for the assembly of closure box,EVA and other products,which has strong versatility.Assemble different box types by replacing the box-feeding module.One machine can solve many practical problems such as high capacity demand,limited working space and miscellaneous.
This machine adopts the latest technology such as servo drive,photoelectric detection,PLC control,etc.,to complete the processes of automatic feeding,glue spraying and positioning.Matching closure box edge folding machine(900F)to complete box forming part.
| MAIN CONFIGURATION | |
| Pneumatic Element | Panasonic/xinjie |
| Servo Driver | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| PLC | Huichuan |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | |
| Model | YY-900A |
| Dimension | 3600*2000*2000mm |
| Machine weight | Around 800KG |
| Speed | 22-30PCS/min |
| Max case size | 900*450mm |
| Min case size | 90*95mm |
| Min case size (with edge folding) | 130*130mm |
| Max Inner box height size | 450*450*130mm |
| Precision positioning | ±0.1mm |
| Power supply | AC220V |
| Power | 8KW |
| Air pressure | 0.6Mpa |
MAIN SPECIFICATION

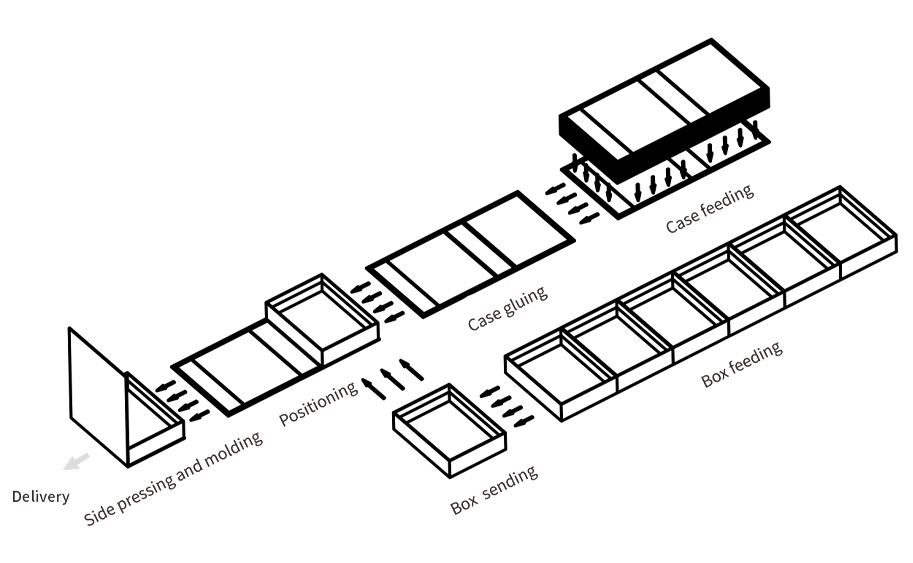

PROCESS FLOW
