This machine is suitable for closure box, shoulder box assembly. This machine adopts the latest technology such as servo drive, photoelectric detection, PLC control, etc., to complete the processes of automatic feeding, glue spraying, positioning, forming and bubble pressing.
| MAIN CONFIGURATION | |
| Servo Motor | Panasonic/xinjie |
| Servo Driver | |
| PLC | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Hot Melt Glue Manchine | JING TAI |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | |
| Model | YY-900N |
| Dimension | 4940*2000*2000mm |
| Machine weight | 800KG |
| Speed | 18-30PCS/min |
| Max case size | 900*450mm |
| Max case size | 90*95mm |
| Max box height size | 120mm |
| Bottom box height Size | 15-80mm |
| Max Frame Strips Size | 420*420*130mm |
| Min Frame Strips Size | 85*85*35mm |
| Total height Size | ≦150mm |
| Precision positioning | ±0.1mm |
| Power supply | AC220V |
| Power | 8KW |
| Air pressure | 0.6Mpa |
MAIN SPECIFICATION

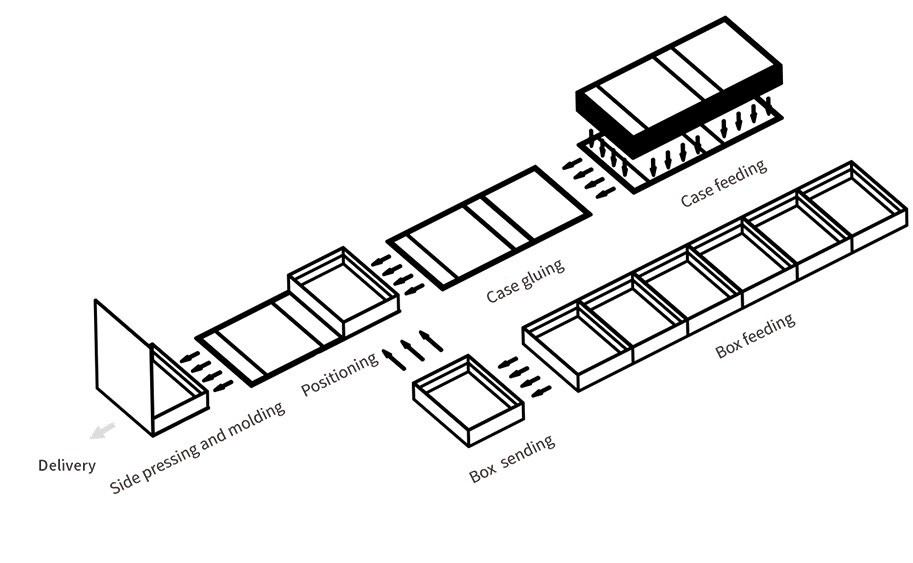

PROCESS FLOW
①BOOK BOX MODE
PROCESS FLOW
②FRAME BOX MODE
