This machine is specially developed by our company for collapsible box.It is suitable for collapsible box wings assembly and side board assembly.It can also assemble closure box(replace the feeding module).The main machine is flexible and multi-purpose,meeting the needs of different situations.
| MAIN CONFIGURATION | |
| Servo Motor | Panasonic/xinjie |
| Servo Driver | |
| PLC | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Hot Melt Glue Manchine | JING TAI |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | ||
| Model | YY-1000Z | YY-1200Z |
| Dimension | 3880*2300*2000mm | 4350*2300*2000mm |
| Machine weight | Around800KG | Around100KG |
| Speed | 15-20PCS/min | 10-18PCS/min |
| Max case size | 1000*450mm | 1200*900mm |
| Max case size | 200*130mm | 100*200mm |
| Max box height size | 1000*450mm | 1200*900mm |
| Max Inner box height size | 90*95mm | 100*200mm |
Wing length Size (Two side boards) | 100-650mm | 120-890mm |
Wing width Size (Two side boards) | min 30mm | MINI35mm |
| Wing center width size(Two side boards) | min 60mm | MINI65mm |
| Side board combination length (three side boards） | 300-650mm | 300-840mm |
| Precision positioning | ±0.1mm | ±0.1mm |
| Power supply | AC220V | AC220V |
| Power | 6KW | 7KW |
| Air pressure | 0.6Mpa | 0.6Mpa |
Product Application Cases
MAIN SPECIFICATION
①Collapsible box mode
②Closure box mode

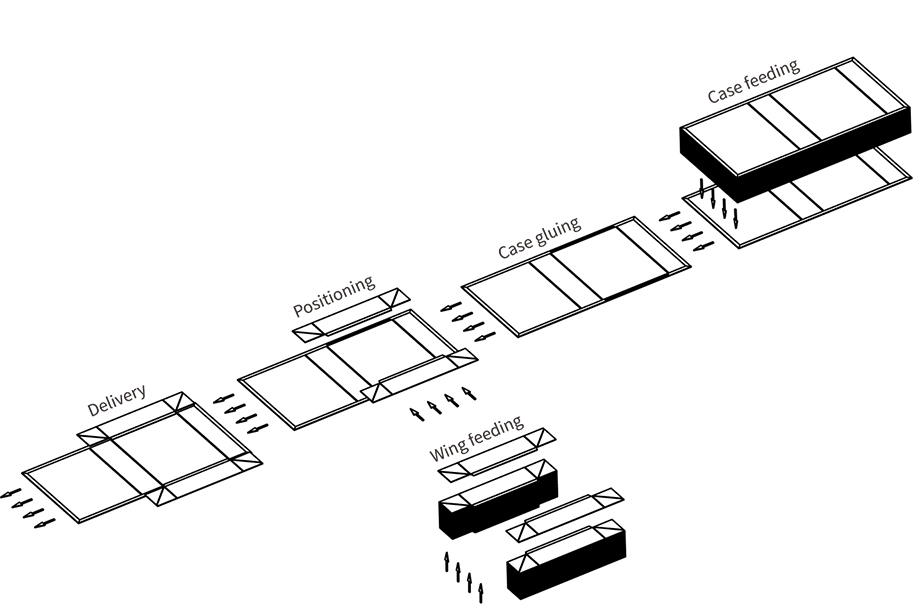

PROCESS FLOW
①FOLDING BOX MODE
②BOOK BOX MODE
