| MAIN CONFIGURATION | |
| Servo Motor | Panasonic/xinjie |
| Servo Driver | |
| PLC | |
| Photosensor | |
| Vacuum Switch | |
| Power Switch | MeanWell |
| Proximity Switch | Schneider Electric SA |
| Linear Module | AMT |
| Hot Melt Glue Manchine | JING TAI |
| Pneumatic Element | AIRTAC |
| MAIN TECHNICAL PARAMETER | ||
| Model | YY-1000B | YY-1200B |
| Dimension | 6320*2300*2000mm | 6950*2300*2000mm |
| Machine weight | Around800KG | Around100KG |
| Speed | 15-18PCS/min | 10-18PCS/min |
| Max case size | 1000*690mm | 1200*900mm |
| Max case size | 100*200mm | 100*200mm |
| Case Width Size A | 90-450mm | 135-60mm |
Wing length Size (Two side boards) | 100-650mm | 120-890mm |
Wing width Size (Two side boards) | min 30mm | MINI35mm |
| Wing center width size(Two side boards) | min 60mm | MINI60mm |
| Side board combination length (three side boards） | 300-650mm | 300-650mm |
| Precision positioning | ±0.1mm | ±0.1mm |
| Power supply | AC220V | AC220V |
| Power | 6KW | 7KW |
| Air pressure | 0.6Mpa | 0.6Mpa |

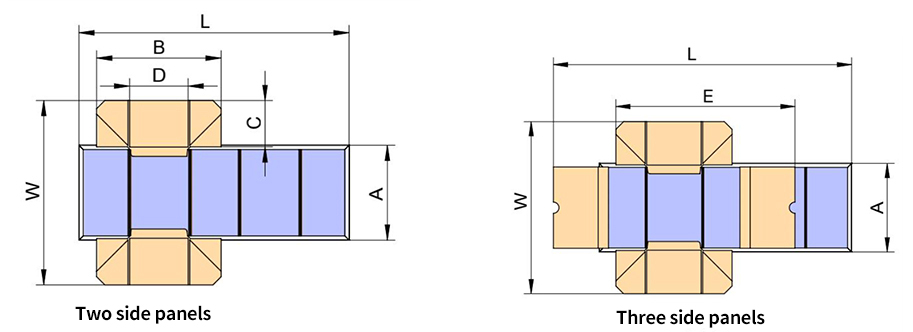

MAIN SPECIFICATION

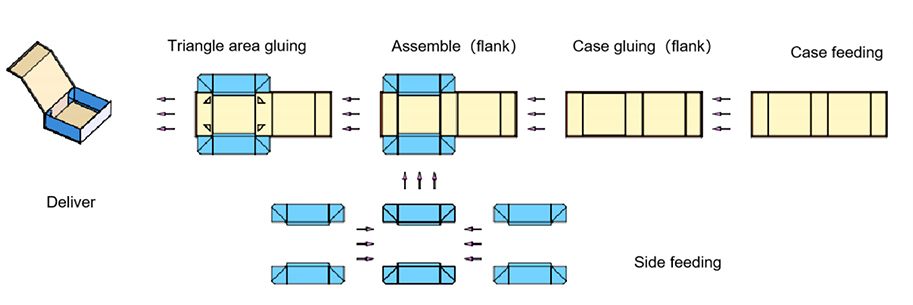

PROCESS FLOW
ADVANTAGES 1.Save labor: 5-6 people 2. Increase production capacity:800-1000PCS/H 3. Improve the accuracy: the box forming size fits the mold 4. Save the cost of double-sided tape: the four triangles can be hot-melted without sticking double-sided tape |
|
